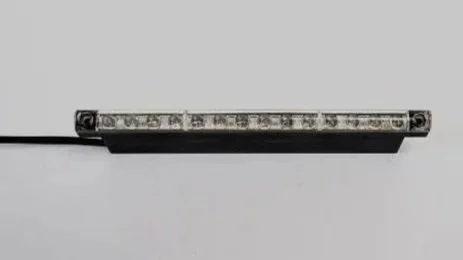

Wing End Plate Rain Light.
WEC17 is FIA 8874-2019 Approved rear wing end plate rain light used in the FIA World Endurance Championship.
Power Consumption: 22 W (approx. 1.6 A @ 13.8 V)
Weight: 115 g approx.
Case Material:
Black anodised Aluminium, for optimal heat transfer.
Light Source: Red LED.
Beam Angle:
8 deg vertically, 25 deg horizontally FWHM approx.
Mounting:
2x M3 through holes counter-bored.
Electrical:
10-16V supply. Two wire power connection (+12V & Ground) and Inhibit wire.
Cable:
Type 55, 24 gauge, in sleeving. Supplied with 1.5m flying lead.
Thermal:
Built in progressive temperature control to keep the electronics within safe operating limits at all times.

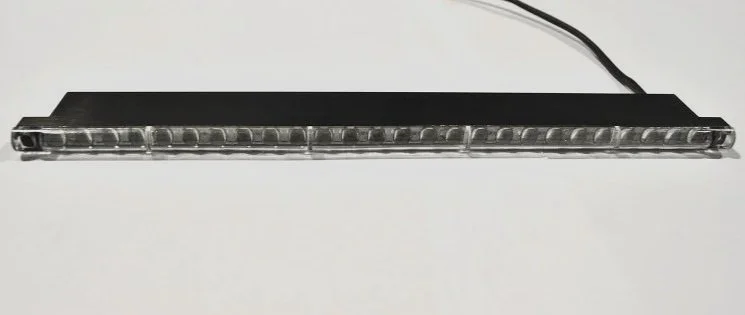

Wing End Plate Combined Rain Light and Cluster.
WEC17-CLS is a complete rear wing end plate mounted rear lighting cluster. Incorporating FIA 8874-2019 approved LED rain light, brake, tail and Indicator functions. Used in the FIA World Endurance Championship.
Power Consumption:
Rain Light – 22 W (approx. 1.6 A @ 13.8 V)
Brake – 3 W (approx. 0.2 A @ 13.8 V)
Tail – ¾ W (approx. 0.05 A @ 13.8 V)
Indicator – 3 W (approx. 0.2 A @ 13.8 V)
Weight: 240 g approx.
Case Material:
Black anodised Aluminium, for optimal heat transfer.
Light Source:
Rain Light – Red LED.
Brake/Tail – Red LED.
Indicator – Amber LED.
Beam Angle:
8 deg vertically, 25 deg horizontally FWHM approx. for rain light, to ECE regs. for other functions.
Mounting:
2x M3 through holes counter-bored.
Electrical:
10-16V supply. Two wire power connection (+12V & Ground) and Inhibit wire for rain light function with switched positive and common ground for other functions and single wire LIN interface.
Cable:
Type 55, 24 gauge, in sleeving. Supplied with 1.5m flying lead.
Thermal:
Built in progressive temperature control to keep the electronics within safe operating limits at all times.

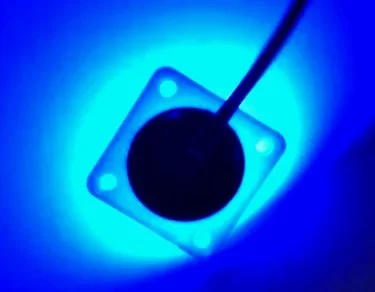

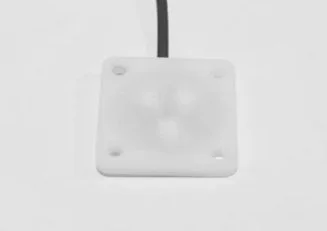

Medical Light.
WEC-MDL is a standard FIA Approved medical light used in most FIA Championships and Series.
Supply Voltage: 10-16 V.
Current consumption: 45 mA.
Weight: 12 g approx.
Light Source: Blue LED.
Light Output: Daylight visible.
Visible Angle: 180 deg. full angle.
Mounting:
4x M3 through holes, or bonding of outer flange to surface.
Cable:
Type 55, 24 gauge. Supplied with 1.5 m flying lead.
Thermal:
Self stable but should be mounted away from other heat sources.
Electric system safety light.
TRI20 is a FIA Approved electric system (ES) safety light used on electric and hybrid cars competing in most FIA Championships of that type.
